2009 Yamaha Kodiak 450 Camo AP HD
Request a Quote Financing Calculator Request a Brochure Financing Form

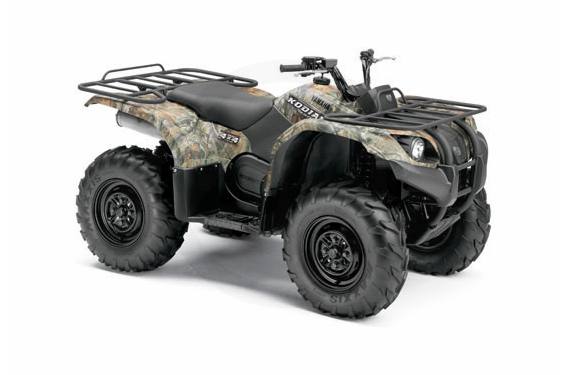

Click here to view full image.
Realtree® AP HD™ Camouflage
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • New aggressive styling
  • New waterproof storage
  • Thicker, more comfortable seat
Engine
  • Engine: 4-stroke, liquid-cooled, single
  • Displacement: 421cc
  • Bore and Stroke: 84.5 x 75mm
  • Compression Ratio: 10:1
  • Carburetion: Mikuni BSR33
  • Ignition: DC-CDI
  • Starting: electric/recoil
  • Lubrication: wet sump
  • Oil Capacity: 2.6 litres
  • Transmission: Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
  • Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
Chassis
  • Suspension (Front): independent double wishbone
  • Suspension (Rear): independent rear suspension with sway bar
  • Brakes (Front): dual 180mm, hydraulic discs
  • Brakes (Rear): Fully Sealed , Oil Bath, Multi Disc
  • Tires (Front): Maxxis AT25x8-12
  • Tires (Rear): Maxxis AT25x10-12
Critical Data
  • Length: 1,991mm (78.4'')
  • Width: 1,093mm (43.0'')
  • Height: 1,120mm (44.1'')
  • Wheelbase: 1,233mm (48.5'')
  • Ground Clearance: 274mm (10.8'')
  • Seat Height: 850mm (33.5'')
  • Dry Weight: 268kg (591 lb)
  • Fuel Capacity: 15 litres
  • Colour(s): Realtree® AP HD™ Camouflage
Additional Features
  • Internal engine counterbalancer minimizes engine vibration to rider.
  • Spin-on oil filter simplifies oil changes.
  • High-positioned carb air intake and clutch intake and exhaust vents prevent water from entering carb or V-belt cover.
  • 4WD front differential lock. Positive mechanical lock-up for maximum traction in 4WD. New forward speed override switch.
  • Wide Grizzly type front fenders and new bumber design with excellent mud and splash protection.
  • Dual 30-watt sealed headlights with replaceable bulbs provides excellent lighting, prevents water penetration and simplifies maintenance and reduces cost.
  • 25-inch Maxxis tires with all-new, more aggressive tire tread pattern for great traction and excellent durability.
  • Sealed marine-style electrical connectors prevents water from entering electrical components and wiring.

Specifications

Engine
Engine Type 4-stroke
Displacement 421 cc
Bore x Stroke 84.5 x 75 mm
Cylinders Single
Engine Cooling Liquid-cooled
Fuel System Mikuni BSR33
Starting System Electric/recoil
Chassis
Front Suspension Independent double wishbone
Front Brake Type Dual 180 mm, hydraulic discs
Front Tires Maxxis AT25x8-12
Rear Suspension Independent rear suspension with sway bar
Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
Rear Tires Maxxis AT25x10-12
Frame Computer-designed steel tube frame
Dimensions/Capacities
Dry Weight 591 lbs (268 kg)
Fuel Capacity 15 l
Ground Clearance 10.8 in. (274 mm)
Machine Dimensions (LxWxH) 78.4 x 43.0 x 44.1 in. (1,991 x 1,093 x 1,120 mm)
Wheelbase 48.5 in. (1,233 mm)
Drive Train
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
General
Speedometer LCD
Odometer LCD
Lighting Dual 30-watt sealed headlights with replaceable bulbs
Colors Realtree® AP HD™ Camouflage

Compare Models

 Print








Year 2009
Manufacturer Yamaha
Model Kodiak 450 Camo AP HD
Style Utility
MSRP* $10,199.00
Chassis
Front Suspension Independent double wishbone
Front Travel
Front Brake Type Dual 180 mm, hydraulic discs
Front Tires Maxxis AT25x8-12
Rear Suspension Independent rear suspension with sway bar
Rear Travel
Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
Rear Tires Maxxis AT25x10-12
Frame Computer-designed steel tube frame
Dimensions/Capacities
Dry Weight 591 lbs (268 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 15 l
Ground Clearance 10.8 in. (274 mm)
Machine Dimensions (LxWxH) 78.4 x 43.0 x 44.1 in. (1,991 x 1,093 x 1,120 mm)
Wheelbase 48.5 in. (1,233 mm)
Drive Train
Drive Train
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, shaft drive
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Engine
Engine Type 4-stroke
Displacement 421 cc
Bore x Stroke 84.5 x 75 mm
Cylinders Single
Engine Cooling Liquid-cooled
Fuel System Mikuni BSR33
Starting System Electric/recoil
Alternator
General
Speedometer LCD
Tachometer
Odometer LCD
Lighting Dual 30-watt sealed headlights with replaceable bulbs
Colors Realtree® AP HD™ Camouflage
